Tissue Response: Muscle : Page 1

Two classes of electrodes are employed in muscles, intramuscular electrodes and epimysial electrodes. Both electrode types are in direct contact with the muscle but usually separated by muscle tissue from the innervating motor nerves.

Intramuscular Stimulating Electrodes.

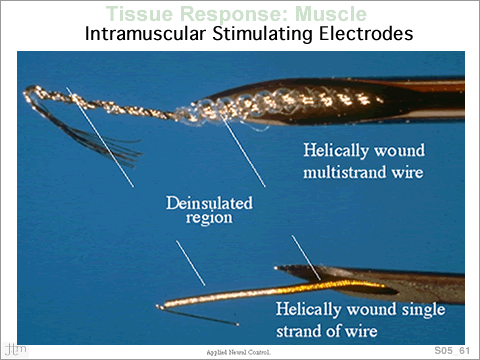

Photograph of two intramuscular electrodes with helical leads, mounted in hypodermic needles, on with multistranded lead wire (Top) and with single strand wire (Bottom)



Tissue Sections.

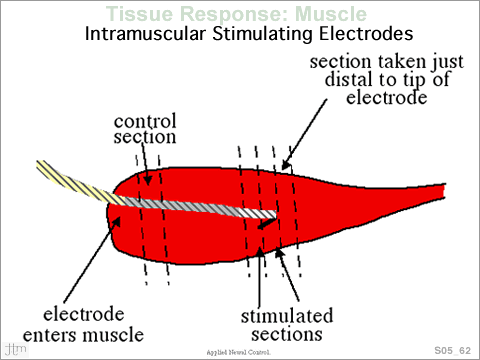

Schematic of location of tissue sections taken from the implanted muscle relative to the position of the electrode lead and tip.
